Small Blade Fuse Glass Tube

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

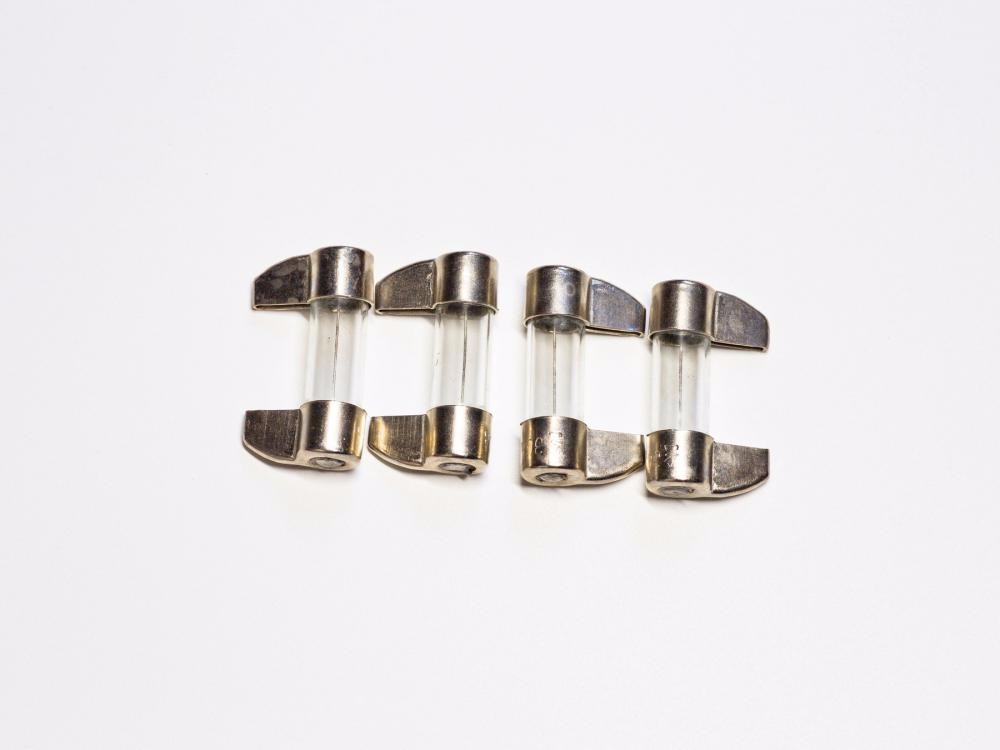

Small Blade Fuse Glass Tube

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: BGXC-1

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

BGXC-1 knife type fuse with plug-in type interface, compared with the conventional cartridge fuse, it is easier for installation. The stable performance and electrical performance will get better after the installation. The fuse has good performance in breaking overload or short-circuits; also it has good insulation resistance. The fuse also has the features of simple structure, easy process, low price and good current-limiting characteristics, etc. At present, it can be applied to large ships, power system, various industry-grade equipments for AC and DC protection, high voltage and low voltage power distribution system protection.



Application:

Ships and all kinds of industrial equipments.



Working Conditions:

Ambient Temperature:5Aand below:-40~+100ºC  6Aand above:-40~+70ºC

Relative Humidity:93% at +40ºC

Atmospheric Pressure:0.399×105Pa~1.0399×105Pa

Vibration:Frequency 50Hz, acceleration 5g

Impact:80~100 times/minute,acceleration 15g



Parameters:

Rated Current(In):0.25,0.5,0.75,1,1.5,2,2.5,3,4,5,6,8,10,20A

Rated Voltage:600V AC

Dimension:  8-0.9×37±1 height 19±0.5



Time-Current Characteristics

1.1In, ≥4 hours

2In, ≤10 seconds

5In, ≤200ms
