Microwave Oven Fuse Glass Tube Fast-acting

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

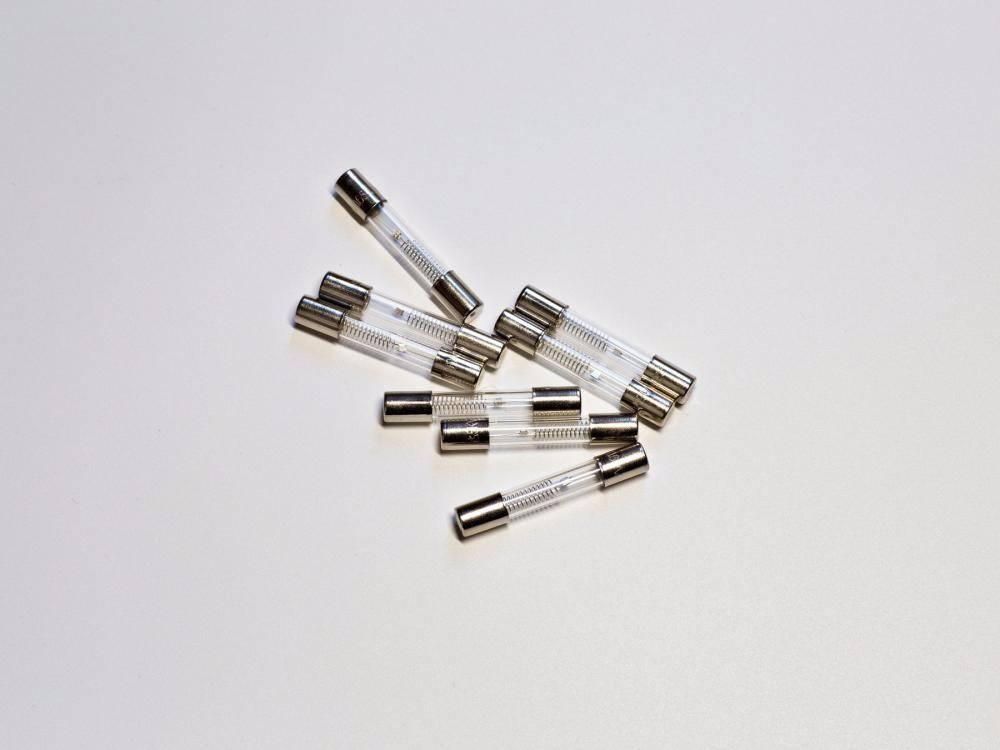

Microwave Oven Fuse Glass Tube Fast-acting

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: GERF1-40

Breaking Capacity: Low

Type: Current Fuse

Shape: Insert

Fusing Speed: F

Fusing Device: Pop-up Solid

Usaga: High Voltage

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

GERF1-40 series glass tube high-voltage fuse without lead is designed and developed by Shanghai Songshan Electronics Co., Ltd. itself for supporting the use in microwave oven. The fuse has achieved TUV certification, in compliance with the IEC60127-II standard, the certification number is J5009962-0004. The fuse into the market for 20 years has won the trust of customers. The microwave ovens equipped with the fuse are exported to all over the world, and the quality of the fuse is stable and reliable. Songshan has always adhered to strict production process, good process control and strict quality control with advanced testing equipments.



Application: Microwave Oven


Packaging Unit: 100 pcs.

Dimention    unit in mm



Electrical  characteristics

   Model

Rated current

(A)

Rated voltage

(kV)

Max

Voltage drop

(mV)

GERF1-40

500mA

5

2000

GERF1-40

550mA

5

2000

GERF1-40

600mA

5

1800

GERF1-40

630mA

5

1800

GERF1-40

650mA

5

1800

GERF1-40

700mA

5

1800

GERF1-40

750mA

5

1800

GERF1-40

800mA

5

1500

GERF1-40

850mA

5

1500

GERF1-40

900mA

5

1500

GERF1-40

950mA

5

1500

GERF1-40

1000mA

5

500

GERF1-40

1250mA

5

400




Current characteristics

Rated

 Blowing time

1.5In

Min

30s

Max

300s

2.0In

Max

20s

2.75

In

Min

20ms

Max

1500ms

4 In

Min

8ms

Max

400ms

10 In

Max

80ms



35A or 10In whichever is greater



Certification

Model

Certification

Certification number

Current range

GERF1-40

TUV

J5009962-0004

500mA-1250mA



Current-time curve
