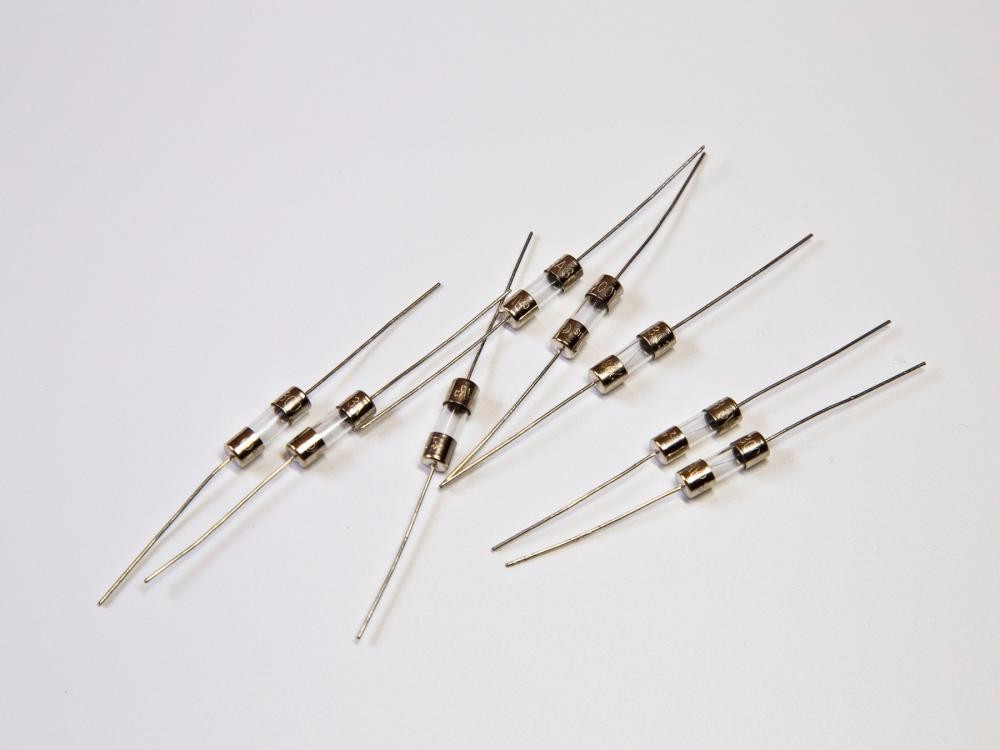

Micro Fuse Glass Tube Fast-acting Tuv Certificate

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Micro Fuse Glass Tube Fast-acting TUV Certificate

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces



Basic Info

Model No.: 229

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Speed: F

Fusing Device: Pop-up Solid

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

229 series glass tube, fast-acting fuse is broadly used in all kinds of lighting rectifier circuit board and also medical equipments; the current range of the fuse is from 1A to 5A. The fuse conforms to the IEC60127-II standard and already acquired TUV certification number J50134670-0001. The superior product performance and reliable product quality have helped win mountains of praises from the market both home and abroad, no quality accident of the product has happened since it launched into the market. All of these are gained based on the philosophy of quality first, customer first.



Application

White goods, Power supply, Industrial control, etc.

Packaging Unit

100 pcs.



Dimention   Unit in mm

c0df482043c22b79c38408154e (1).jpg


Current characteristics

Rated

 Blowing time

100%

4 hour Min

135%

1 hour Max

200%

1 s Max



Rated breaking capacity

35 amperes at 250V AC(400mA~1A)

100 amperes at 250V AC(1.25A~2.5A)

100 amperes at 300V AC/3A



Certification



Model

Certification

Certification number

Current range

229

 TUV

J50134670-0001

1A-5A





Current-time curve
