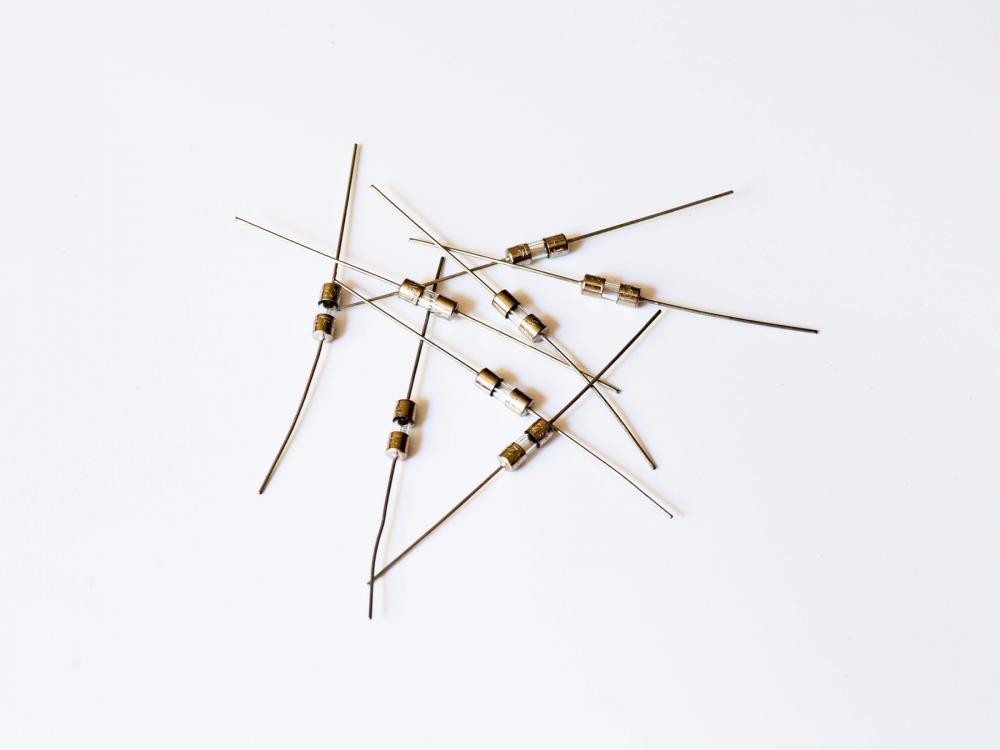

Micro Fuse Glass Tube Axial Lead

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Micro Fuse Glass Tube Axial Lead

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: 219

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Device: Pop-up Solid

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

Such fuses are divided into two types, one is fast-acting fuse, and the other is time-lag fuse. The fusing time mainly depends upon the type of fuses to meet respective requirements. Such fuses are divided into two kinds by tube, one is glass tube fuse and the other is ceramic tube fuse. The fuses' main structure also contains copper cap on both ends, tube body and internal fuse wire, which is based on the fuse amperes, and need comply with several test requirements of the fuses, as well as a series of requirements to achieve the standards.



Application

White goods, Power supply, Industrial control, etc.

Packaging Unit

100 pcs.



Current characteristics

Rated

Blowing time

Quick-acting

Time-lag

100%

4 hour Min

200%

60sec Max

1~60sec





Rated breaking capacity

50 amperes at 125V AC(500mA~5A)

50 amperes at 250V AC(500mA~5A)





Certification

Model

Certification

Certification number

Current range

218  219

UR

JDYX2.E171685

100mA-5A

218  219

CSA

JDYX8.E171685

100mA-5A


Current-time curve
