Hbc Tube Fuse Time-lag 6 X 30 Mm

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

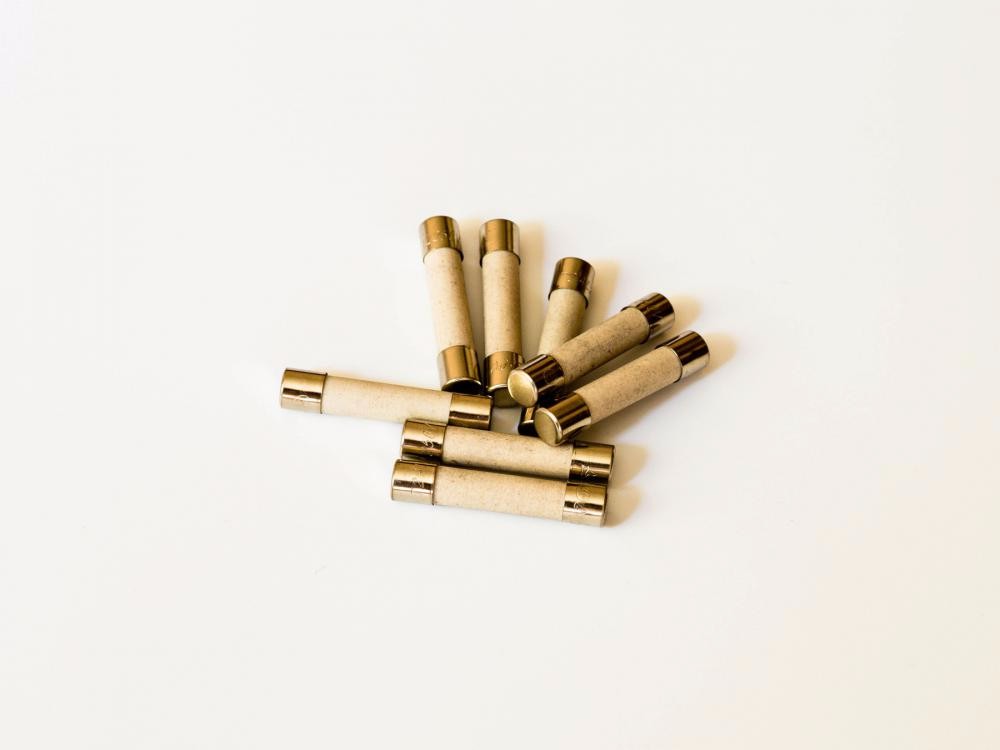

HBC Tube Fuse Time-lag 6 X 30 mm

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces





Basic Info

Model No.: RT1-30(H)

Breaking Capacity: High

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Speed: T

Fusing Device: Pop-up Solid

Standard: VDE

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai, China

Product Description

RT1-32 (30) (H) ceramic tube, high breaking, slow fuse, size Ф6.35×31.8. Additional clips are needed.

Appearance: fonts exist on both ends of the copper cap, and they are bronze pressing. The font lines are of uniform thickness, and have no excessive weight, no print overlap, no deformation of caps, no lack of cap printing and no other marking illegible phenomenon, the porcelain tube has not any rupture or crack, the copper cap has no scratches, also there is no exposed copper or exposed melt (wire head) on cap ends or other undesirable phenomena. The product is a fuse with inside welding and its copper caps on both ends are lead-free soldered, which is in compliance with international environmental requirements, there is no pollution to the environment.



Application: Lightning Protection Equipment, Power Supply, Power Tool, etc.



Packaging Unit: 100 pcs.



References:    corresponding  fuse holder      BH001-2      BZ001      BH001

                        corresponding  fuse  clip        JZ-012        JZ-005


Dimension:     unit in mm

ca5b1eb67a32cb722351f228f3 (1).jpg



Electrical  characteristics

Model

Rated current

(A)

Rated voltage

(V)

Max

Voltage drop

(mV)

Max

persistence

Power consumption

(W)

RT1-32(30)(H)

1A

250

350

2.5

RT1-32(30)(H)

1.25A

250

300

2.5

RT1-32(30)(H)

1.6A

250

200

2.5

RT1-32(30)(H)

2A

250

190

2.5

RT1-32(30)(H)

2.5A

250

180

2.5

RT1-32(30)(H)

3.15A

250

140

4

RT1-32(30)(H)

4A

250

100

4

RT1-32(30)(H)

5A

250

100

4

RT1-32(30)(H)

6.3A

250

100

4

RT1-32(30)(H)

8A

250

100

4

RT1-32(30)(H)

10A

250

100

4

RT1-32(30)(H)

12.5A

250

80

4

RT1-32(30)(H)

16A

250

80

6





RT1-32(30) (H)Current characteristics

Rated

 Blowing time

1A-3.15A

More than

3.15A-10A

More than

10A-16A

2.1In

Max

30min

30min

30min

2.75

In

Min

750ms

750ms

750ms

Max

80s

80s

80s

4 In

Min

95ms

150ms

150ms

Max

5s

5s

8s

10 In

Min

10ms

10ms

10ms

Max

150ms

150ms

150ms


Rated breaking capacity:1500A



RT1-32(30)(H) Current-time curve
