Glass Tube Fuse Fast-acting 6.3 X 30 mm
Brand : Songshan
Product origin : Shanghai
Delivery time : 7-15 days
Supply capacity : 15000000
Glass Tube Fuse Fast-acting 6.3 X 30 mm
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
Min. Order: | 1000 Piece/Pieces |
Basic Info
Model No.: RF1-30
Breaking Capacity: Low
Type: Current Fuse
Usaga: Low Voltage
Shape: Insert
Fusing Speed: F
Fusing Device: Pop-up Solid
Standard: VDE
Additional Info
Packaging: Carton
Brand: Songshan
Transportation: Ocean,Land,Air
Place of Origin: Shanghai,China
Product Description

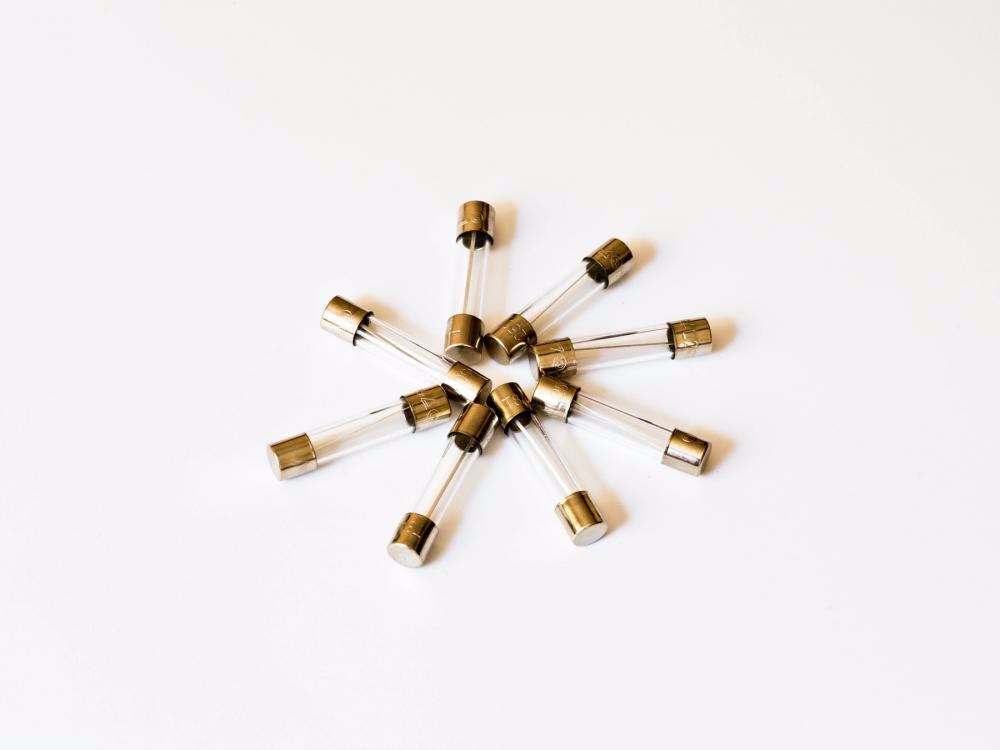

RF1-32(30) glass tube: The fuse is used as power protector of short circuit and over load in Electric devices. It is a tube type fast fuse protector made of glass tube with clean surface, without crack or distortion. The two sides are covered by nickel plating brass caps with fine electrical conductivity. The melting body is made of silver-copper alloy. It is built-in product with no lead which is in accordance with the standard of IEC60127-II, and also acquired the certificate CCC, CQC and TUV. This product is widely applied in power supply, white goods, electrical tools and industrial controlling system. The tube dimension is 31.8±0.8(30±1)with wire sized ø6.35±1.
Application: White goods, Power supply,Industrial control,Electric tools etc.
Packaging Unit: 100 pcs.
References: corresponding fuse holder BH001-2 BZ001 BH001
corresponding fuse clip JZ-012 JZ-005
RF1-32(30)(Glass tube)
Unit:mm
Electrical characteristics
Model | Rated current (A) | Rated coltage (V) | Max Voltage Drop (mV) | Max persistence Power consumption (W) |
RF1 -32(30) | 500mA | 250 | 2000 | 1.6 |
RF1 -32(30) | 630mA | 250 | 1800 | 1.6 |
RF1 -32(30) | 750mA | 250 | 1500 | 1.6 |
RF1 -32(30) | 800mA | 250 | 500 | 1.6 |
RF1 -32(30) | 1A | 250 | 500 | 1.6 |
RF1 -32(30) | 1.25A | 250 | 400 | 2.5 |
RF1 -32(30) | 1.6A | 250 | 400 | 2.5 |
RF1 -32(30) | 2A | 250 | 300 | 2.5 |
RF1 -32(30) | 2.5A | 250 | 250 | 2.5 |
RF1 -32(30) | 3A | 250 | 250 | 4 |
RF1 -32(30) | 3.15A | 250 | 250 | 4 |
RF1 -32(30) | 4A | 250 | 250 | 4 |
RF1 -32(30) | 5A | 250 | 200 | 4 |
RF1 -32(30) | 6.3A | 250 | 200 | 4 |
RF1 -32(30) | 8A | 250 | 200 | 4 |
RF1 -32(30) | 10A | 250 | 200 | 4 |
RF1 -32(30) | 12.5A | 250 | 180 | 6 |
RF1 -32(30) | 16A | 250 | 180 | 6 |
Current characteristics
Rated | Blowing time | ||
More than 100mA-10A | More than 10A-16A | ||
2.1In | Max | 20s | 60s |
2.75In | Min | 20ms | 20ms |
Max | 1500ms | 3s | |
4 In | Min | 8ms | 8ms |
Max | 400ms | 1s | |
10 In | Min | 80ms | 150ms |
Rated breaking capacity
35A or 10In whichever is greater
Current-time curve
