Glass Tube Fuse Axial Lead Fast-acting 5 X 20 mm

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Glass Tube Fuse Axial Lead Fast-acting 5 X 20 mm

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF,FCA,CPT,CIP

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: RF2-20

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Fusing Speed: F

Fusing Device: Pop-up Solid

Standard: VDE

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Air

Place of Origin: Shanghai, China

Product Description

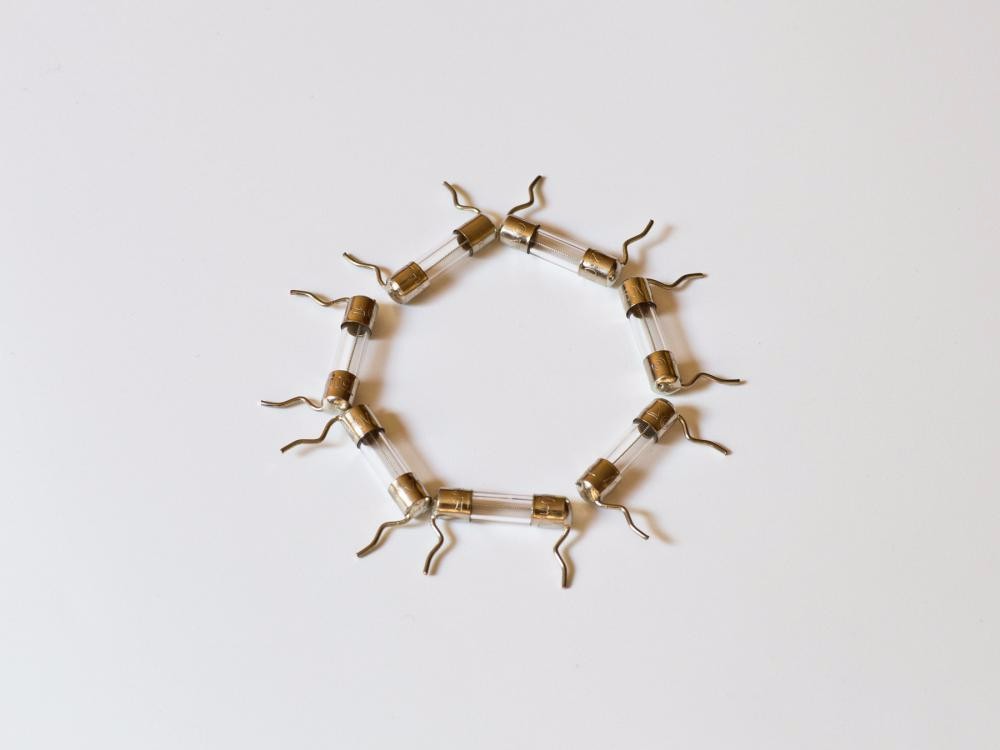

The fast lead fuse's main material is glass tube, copper and alloy wire, and its rated breaking capacity is 35A or 10In, in order to adapt to the needs of the market, according to customer requirements, the lead length and shape can be customized to facilitate the welding on the circuit board. The fuses conform to the IEC standards. The performance of the fuse is greatly improved through the continuous improvement of the fuse, and thus gained a good reputation in the industry. The products have been exported to the Europe and the United States, etc. and received constant praise from the market.



Application

White goods, Power supply,Industrial control system, etc.



Packaging Unit

100 pcs.



RF2-20 series(Glass tube)




Dimention:

Unit:mm




Electrical Characteristcs

Model

Rated current (A)

Rated voltage (V)

Max Voltage drop (mV)

Max persistence Power consumption

(W)

RF2-20

500mA

250

1000

1.6

RF2-20

630mA

250

650

1.6

RF2-20

750mA

250

650

1.6

RF2-20

800mA

250

240

1.6

RF2-20

1A

250

200

1.6

RF2-20

1.25A

250

200

1.6

RF2-20

1.6A

250

190

1.6

RF2-20

2A

250

170

1.6

RF2-20

2.5A

250

170

1.6

RF2-20

3.15A

250

150

2.5

RF2-20

4A

250

130

2.5

RF2-20

5A

250

130

2.5

RF2-20

6.3A

250

130

2.5

RF2-20

8A

250

130

4

RF2-20

10A

125/250

130

4

RF2-20

12.5A

125/250

100

6

RF2-20

16A

125/250

100

6



Current characteristics



Rated

Blowing time

more than

100mA-6.3A

more than

6.3A-10A

more than

10A-16A

2.1In

Max

30min

30min

30min

2.75In

Min

50ms

50ms

50ms

Max

2s

2s

3s

4 In

Min

10ms

10ms

10ms

Max

300ms

400ms

400ms

10 In

Max

20ms

40ms

50ms





Breaking Capactiy

35A or 10In whichever is greater



Time-Current Curves
