Glass Fuse Axial Lead Fast-acting

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Glass Fuse Axial Lead Fast-acting


Payment   Type:

T/T,Paypal,Western Union

Incoterm:

FOB,CFR,CIF,FCA,CPT,CIP

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: 211

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Fusing Speed: F

Standard: UL

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

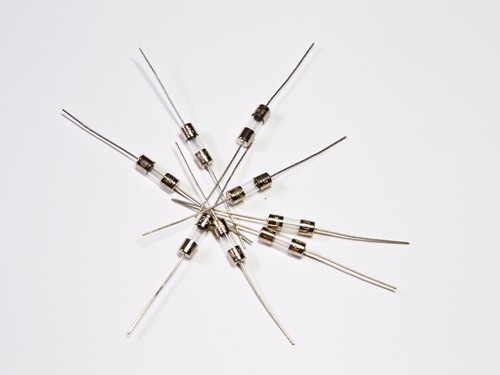

The product is an extension of type 211 products, and is made of glass tube with lead. Through this improvement, the product applications become more wide, including the use of circuit boards, PCB boards, wiring harness products. Greatly enriched the application on the product structure, the product with lead wire can also be taped wholly, the product appearance beauty is provided, at the same time can maximize the product range of use, can be used in automatic equipments, thus increases the production capacity, improves the previous mode of production of the manual installation of manufacturers , enhances the production capacity with maximum and reduces the production intensity.



Applications: White goods, Power supply,Industrial control, etc.



Packaging Unit: 100 pcs.





Dimensions (unit in mm)




Electrical  characteristics

     Model

Rated current

(A)

Rated voltage

(V)

Max

Voltage drop

(mV)

Max

persistence

Power consumption

(W)

211

500mA

125/250



211

600mA

125/250



211

700mA

125/250



211

800mA

125/250



211

1A

125/250/300



211

1.25A

125/250/300



211

1.6A

125/250/300



211

2A

125/250/300



211

2.5A

125/250/300



211  211-1

3A

125/250

300/350



211

4A

125/250

100

1.6

211

5A

125/250

100

1.6

211

6.3A

125/250

100

1.6

211

8A

125/250

100

4

211

10A

125/250

100

4

211

12.5A

125/250

80

6

211

15A

125/250

80

6



UL Current characteristics

Rated

 Blowing time

100%

4hour Min

135%

1hour Max

200%

5s Max



UR Current characteristics

Rated

 Blowing   time

More   than

4A-6.3A

More   than

6.3A-10A

More   than

10A-16A

2.1In

Max

30min

30min

30min

2.75

In

Min

50ms

50ms

50ms

Max

2s

2s

3s

4 In

Min

10ms

10ms

10ms

Max

300ms

400ms

400ms

10 In

Min

20ms

40ms

50ms



UL Rated breaking capacity

10,000 amperes at 125Vac(200mA~3A)

35 amperes at 250Vac(200mA~1.25A)

100 amperes at 250Vac(1.6~3A)

100 amperes at 300Vac/3A

100 amperes at 350Vac/3A



UR Rated breaking capacity

10× ampere rating at 125Vac (4A~8A)

10× ampere rating at 250Vac (4A~8A)

100 amperes at 125Vac(10A~15A)

100 amperes at 250Vac(10A~15A)



Certification

Model

Certification

Certification number

Current range

211

UL

JDYX.E171685

200mA-3A

211

CSA

JDYX7.E171685

200mA-3A

211-1

UL

JDYX.E171685

3A

211-1

CSA

JDYX7.E171685

3A

211

UR

JDYX2.E171685

4-15A

211

CSA

JDYX8.E171685

4-15A



211  211-1  UL series  Current-time curve
