Fuse Holder for Blade Fuse

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Basic Info

Model No.: LM-1/LM-2

Usage: Instrument

Material: Bakelite

Installation: Lead Wire Type

Type: Lead Wire Fuse Holder

Form of Installation: Insurance Tube Holder

Environmental Protection: Environmental Protection Fuse Holder

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

LM-1/LM-2 fuse holder is an improved blade model based on the former Soviet Union's technology. It has multiple characteristics such as anti-vibration, high stability and applicability under wide-range of current etc. The fuse holder is widely used in power protection of ships, industrial controlling equipment and large vehicles. By using the fuse holder with Songshan's fuse BGXC-1/BGDC-1, the range of current could be extended to the overload protection at Maximum 60A. With two years of technical breakthrough, this fuse made of high strength elastic copper material performs its excellent properties in various models of ships and industrial controlling equipment in these years.

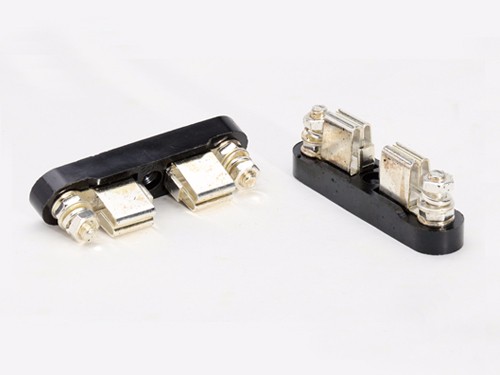

fuse holder

Fuse-holders


A=Model                     B= Dimensions

C= Current/Voltage         D=For Fuse-Links

E= Plug in and Take off Force   F= Contact Resistance

G= Dielectric Strength       H= Insulation


A=LM-1/ LM-2

B=63×16×25(LM-1)

 80×26×18(LM-2)

C=20A/250V(LM-1)

 40A/250V(LM-2)

D=Ø8×37(LM-1)

Ø12×50(LM-2)

E=>1N

F=<0.02Ω

G=3000VAC

H=>1000MΩ
