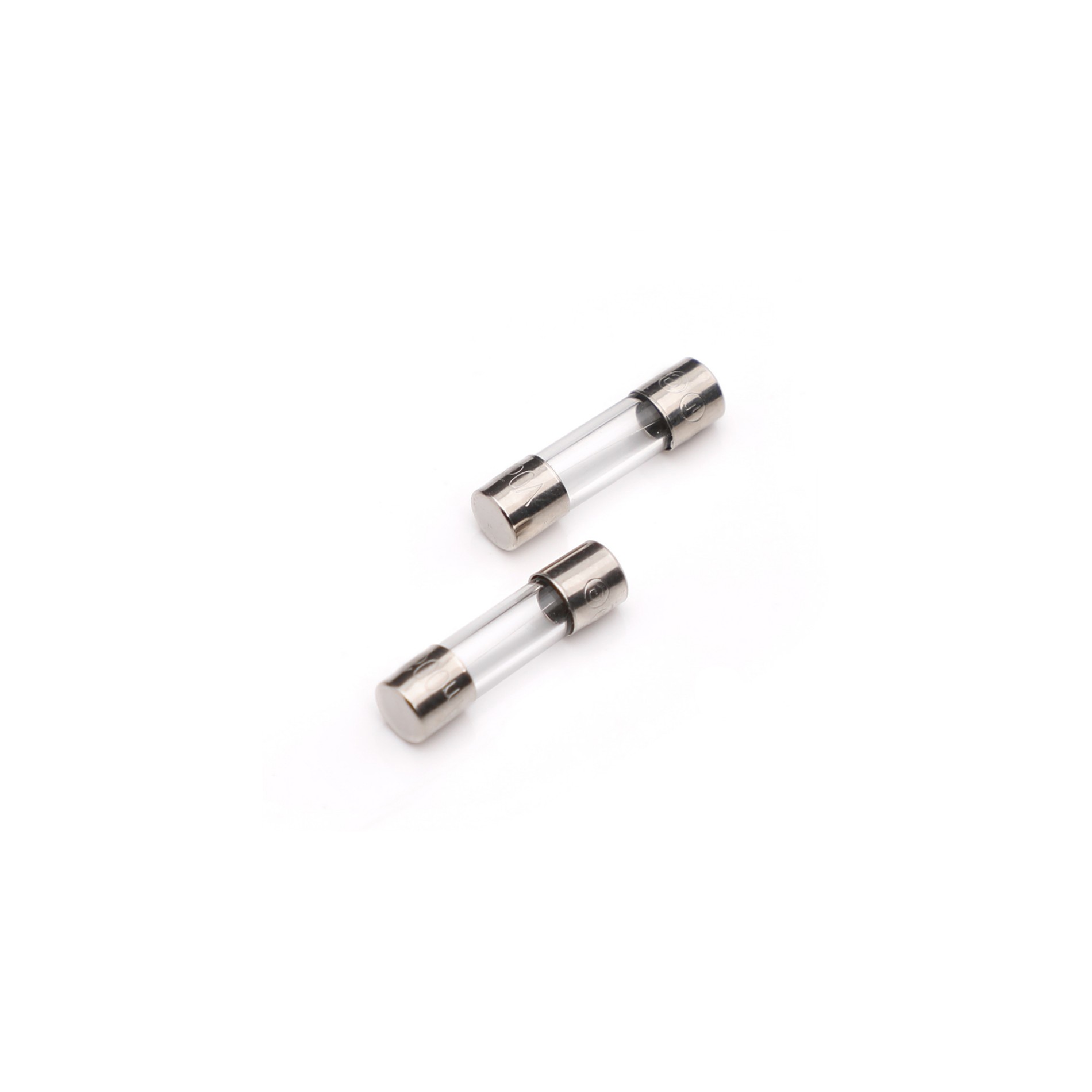

Fast-acting Glass Body Cartridge Fuse 5x20mm

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

The type of ​5×20mm fast-acting glass body cartridge fuse is designed according to IEC 60127-2 specification for fast-acting fuses. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Fast-acting Glass Body Cartridge Fuse 5x20mm

Payment   Type:

T/T, Paypal, Western Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces



Basic Info

Model No.: F

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Speed: F

Fusing Device: Pop-up Solid

Standard: JIS

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean, Land, Air

Place of Origin: Shanghai, China



Application: White goods, Power supply, Industrial control, Instrument and meter, etc.



Packaging Unit: 100 pcs.





PSE F series(Glass tube)

Unit:mm

China Military High Reliabiliity Fuse





F  JIS B series Current characteristics

Rated

 Blowing time

135%

1.5hour Min

160%

1hour Max

200%

2 min Max



500 amperes at 125Vac(1A~15A)PSE Type B

100 amperes at 125Vac(1A~15A)PSE Type B



Certification

Model

Certification

Certification number

Current range

F

PSE

JET6121-31003-1001

1A-30A

JET6121-31003-1002

JET6121-31003-1003

JET6121-31003-1004

JET6121-31003-1005

JET6121-31003-1006

JET6121-31003-1007

JET6121-31003-1008

JET6121-31003-1009

JET6121-31003-1010

JET6121-31003-1011





PSE F Current-time curve
