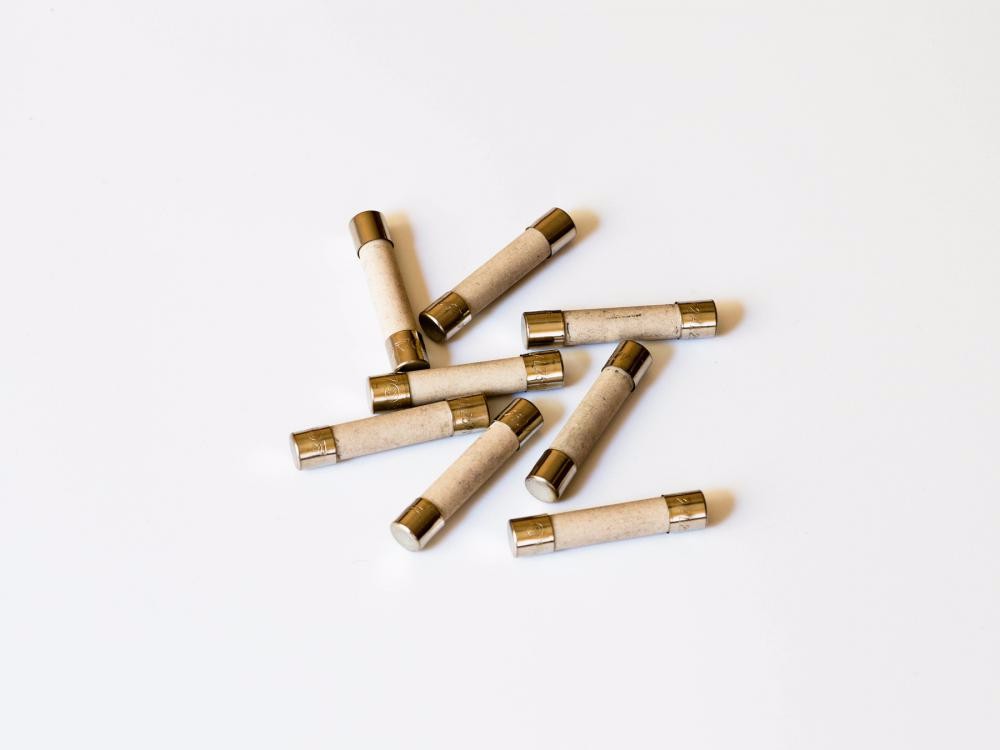

Ceramic Tube Hbc Fuse 6.35×31.8 Mm

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

This type of fuse without lead is designed to ceramic tube, single cap and high breaking capacity, and is mainly used in air conditioning, refrigerator, washing machine and other white goods, power supply, industrial control and other related fields. The breaking capacity of the fuses is 1000 A at 500V AC, and thus the fuses belong to the high security characteristic components. Such type of fuses with high breaking capacity is more secure under the same current characteristics. The performance of the fuses is in line with the UL248-14 standard. The size of the fuses is 6.35×31.8 mm, and the fuses are usually fitted with fuse clips for use.

Ceramic Tube HBC Fuse 6.35×31.8 mm

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces


Basic Info

Model No.: 306

Breaking Capacity: High

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Device: Pop-up Solid

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai, China



Application: Lightning Protection Equipment, Power Supply, Power Tool, etc.



Packaging Unit: 100 pcs.



Dimension:   unit in mm

10 Amp Slow Blow Ceramic Fuse



Electrical  characteristics

   Model

Rated current

(A)

Rated voltage

(V)

Max

Voltage drop

(mV)

306

200mA

500

1500

306

250mA

500

1300

306

315mA

500

1100

306

400mA

500

1000

306

500mA

500

900

306

630mA

500

300

306

800mA

500

250

306

1A

500

150

306

1.25A

500

150

306

1.6A

500

150

306

2A

500

150

306

2.5A

500

120

306

3.15A

500

100

306

4A

500

100

306

5A

500

100

306

6.3A

500

100

306

8A

500

100

306

10A

500

100

306

12A

500

80

306

12.5A

500

80

306

15A

500

80

306

16A

500

80

306

20A

500

80

306

30A

500

80





Current characteristics

Rated

 Blowing time

100%

4hour Min

150%

30 min Max

200%

30 min Max

300%

10s Max


Rated breaking capacity

1000 amperes at 500vac



Current-time curve15 Amp Fast Blow Ceramic Fuse
