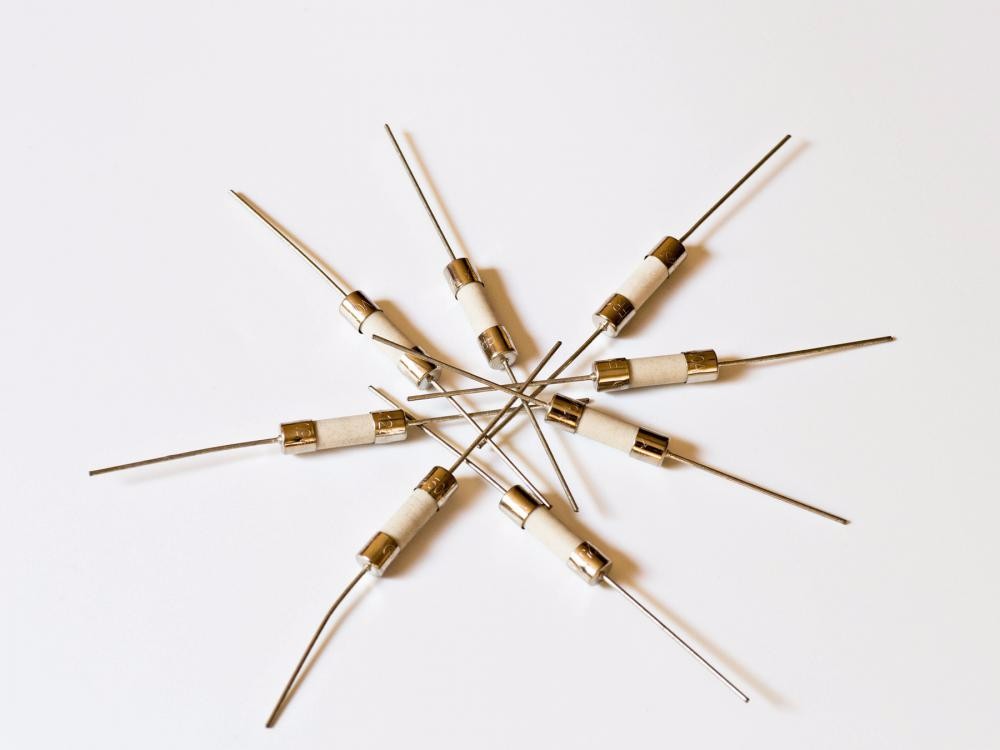

Ceramic Tube Fuse Time-lag Axial Lead 5x20 Mm

Brand : Songshan

Product origin : Shanghai

Delivery time : 7-15 days

Supply capacity : 15000000

Ceramic Tube Fuse Time-lag Axial Lead 5X20 mm

Payment   Type:

T/T,Paypal,Western   Union

Incoterm:

FOB,CFR,CIF

Min.   Order:

1000 Piece/Pieces



Basic Info

Model No.: RT2-20(C)

Breaking Capacity: Low

Type: Current Fuse

Usaga: Low Voltage

Shape: Insert

Fusing Speed: T

Fusing Device: Pop-up Solid

Additional Info

Packaging: Carton

Brand: Songshan

Transportation: Ocean,Land,Air

Place of Origin: Shanghai,China

Product Description

The tube fuse is used as power protector of short circuit and over-load in Electric devices. It is a tube type slow fuse made of clean surface ceramic tube without crack or distortion. The fuse's both sides are caps made of nickel plating brass with fine electrical conductivity. The melting body is made of silver copper alloy wire. It is a built-in product with lead, which is in accordance with the standard of IEC60127-II and obtained TUV. The fuse is widely applied in electrical working tools and industrial controlling system, as well as white goods, power supply, etc.

Application:
Electrical Tools, Industrial Controlling System, White Goods, Power Supply, etc.



Packaging Unit: 100 pcs.



RT2-20 series(Ceramic tube)



Dimention:Unit in mm





Electrical characteristics

Model

Rated current (A)

Rated voltage (V)

MaxVoltage drop (mV)

Max persistence

Power consumption

(W)

RT2-20

500mA

250

900

1.6

RT2-20

630mA

250

300

1.6

RT2-20

750mA

250

250

1.6

RT2-20

800mA

250

150

1.6

RT2-20

1A

250

150

1.6

RT2-20

1.25A

250

150

1.6

RT2-20

1.6A

250

150

1.6

RT2-20

2A

250

150

1.6

RT2-20

2.5A

250

120

1.6

RT2-20

3.15A

250

100

1.6

RT2-20

4A

250

100

1.6

RT2-20

5A

250

100

1.6

RT2-20

6.3A

250

100

1.6

RT2-20

8A

250

100

4

RT2-20

10A

125/250

100

4

RT2-20

12.5A

125/250

80

6

RT2-20

16A

125/250

80

6



Current characteristics

Rated

Blowing time

More than

100mA-10A

More than

10A-16A

2.1In

Max

2min

5min

2.75In

Min

600ms

600ms

Max

10s

15s

4 In

Min

150ms

150ms

Max

3s

5s

10 In

Min

20ms

20ms

Max

300ms

400ms



Rated breaking capacity

35A or 10In whichever is greater



Current-time curve
